OPRANIC P6 Hybrid Infrared Panel Heater

Description

The OPRANIC Hybrid P6 Series offers energy-efficient heating with its innovative dual hybrid technology, combining infrared and convection heating. The infrared heater emits direct, sun-like radiant waves, while convection heating is generated through the circulation of heated air inside the panel's open casing. This dual approach enhances efficiency by ensuring thorough warmth distribution throughout the room.

The OPRANIC Hybrid P6 Series is available in 550 Watts and 900 Watts. Energy efficiency is achieved through in-house developed resistance and nanotechnology silicon wire cabling. The heat resistors spread entirely up to the edges of the heater, assuring even heat distribution without hot spots. OPRANIC Hybrid series converts approximately 99% of the electrical energy into thermal output, providing maximum energy efficiency.

The P6 Infrared heater is equipped with a built-in thermostat, a mechanical thermostat that allows you to adjust the heater surface temperature with stepless control. P6 Hybrid infrared heaters are slim at 4 cm deep, built with high-quality metal housing, providing durability featuring, and a sleek white finish.

The specially designed mounting system includes a safety lock mechanism for secure horizontal wall installation. The OPRANIC P6 Series holds an IP24 safety rating, making it safe for bathroom use with protection against water splashes, and includes integrated overheating and overvoltage protection. Certified by CE, EMC, REACH, and RoHS standards.

Optional Accessories

The Hybrid P6 Series can be independent and mobile, with standing legs as optional for easy use anywhere. The series is also compatible with other plugged-in thermostat systems and can be integrated into smart home environments for added convenience. The OPRANIC Hybrid P6 Series ensures efficient, independent heating wherever needed.

You can turn our OPRANIC Metal Series into a mobile heater with metal supporting legs. Thanks to its easy-to-use mounting bracket system, you can remove the device from the wall or ceiling and convert it into a versatile mobile heater.

Performance

• Heating Output: Available in power levels of 550W and 900W

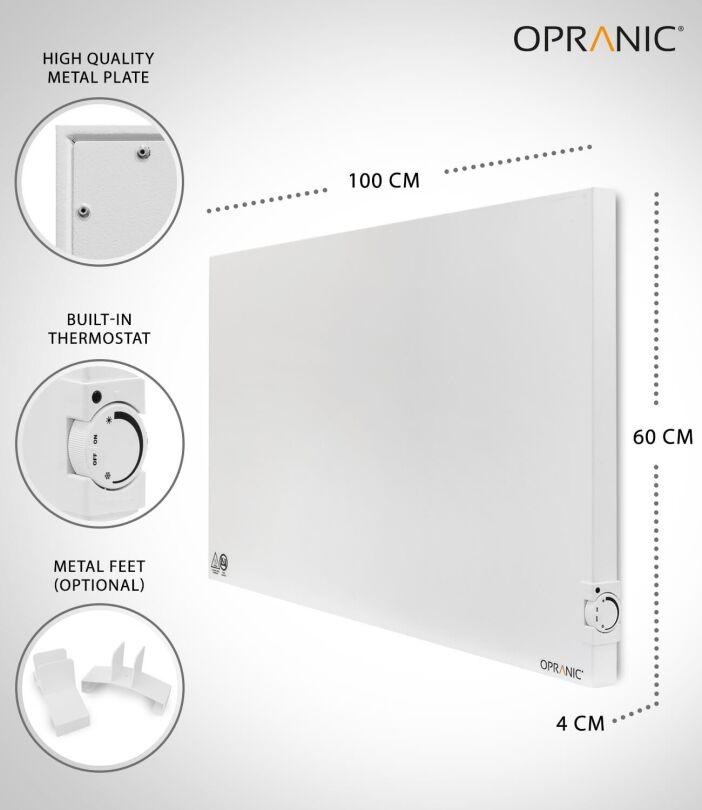

• Dimensions:
  • 550 Watts: 60 x 60 x 4 cm
  • 900 Watts: 100 x 60 x 4 cm
• Heating Area: Up to 22 m² depending on the model.
• Surface Temperature: Up to 110°C.
• Backside Temperature: Approximately 35 – 45°C.
• Heat Type: Long-wave infrared C radiation.
• Mounting Depth: Total depth with bracket is 5,4 cm.
• Power Supply: 230V / 50Hz with a 1,9 m power cord.

Technical Specifications

• Material: High-quality metal construction.
• Power Supply: 230V / 50Hz with a 1,9 m power cord.
• Weight:
  • 550 Watts: 7 kg
  • 900 Watts: 11 kg
• Protection Class: I
• Heating Coverage: Exclusively for closed interior spaces
  • 550 watts: up to approximately 14 m²
  • 900 watts: up to approximately 22 m²

The above heating coverage estimates are based on measurements and tests conducted in well-insulated rooms. Actual heating area coverage may vary due to factors such as ceiling height, room size, insulation quality, building structure, and the number of external walls.

Heating Technology

Heating Filament: Twin heat conductor technology with a serpentine layout for uniform heat distribution and no additional magnetic fields. The heating filament extends up to the edges of the panel, ensuring a uniform surface temperature and efficient heat radiation without hot spots.

Radiation Efficiency

Our infrared panel heaters are designed for optimal energy conversion, ensuring that more electrical energy is directly converted into warmth. They exceed industry standards, providing efficient heating for both small and large spaces. OPRANIC infrared heaters deliver consistent heat distribution with minimal energy loss, resulting in significant savings on heating costs.

Built-in Thermostat and External Thermostat

The P6 Series has a built-in mechanical thermostat that allows for the adjustment of the heater's surface temperature. The built-in thermostat regulates the heating output by adjusting the surface temperature of the radiator. Additionally, the P6 Hybrid Infrared Heater can be controlled with an external thermostat, which is not included in the product package. The choice of a suitable thermostat depends on the intended application. OPRANIC P6 Series Infrared Heaters have an open interface, making them compatible with any thermostat system. They are also designed for integration into smart home environments and are compatible with thermostats from other manufacturers.

Safety Features and Safety Use

• Overheating Protection: Integrated safety switch prevents dangerous temperatures.
• IP24 Rating: Protected against water splashes from all directions.
• Safety Distances: Maintain a safety distance of 30 cm in front and 10 cm on all sides, including upwards and downwards, from flammable objects.

Applications

Ideal for living rooms, offices, bathrooms, bedrooms, kitchens, children's rooms, laundry rooms, basements and attics, hobby rooms, garden houses, sunrooms, holiday homes, small apartments, greenhouse, etc.

Mounting Instructions

Suited for wall mounting, the brackets included in the package allow the heater to be installed horizontally. To install, fasten the bracket to the wall with the supplied screws and dowels. Then, slide the heater into place and turn the safety bracket for a secure and simple installation. For optimal heating performance, we recommend a maximum distance of 3 to 4 meters from the desired heating area.

Delivery Contents

• 1 x OPRANIC P6 Metal Infrared Panel
• 1 x Patented Mounting Bracket
• 1 x Installation Kit (dowels & screws)
• 1 x User Manual
• 1 x Integrated Power Cord

Technical Data

• Colour: White
• Performance: 550W and 900W
• Maximum Efficiency: Approximately 99% of electrical energy converted to thermal output
• Heatable Area: Up to 22 square meters depending on the model

The OPRANIC P6 Series combines advanced infrared technology with sleek design for an efficient and safe heating solution, suitable for various indoor applications.

Regulation (EU) 2015/1188

Please refer to the EU Ecodesign Regulation 2015/1188. To operate the heating in accordance with EU Regulation No. 2015/118, please use an additional electronic thermostat system that has "window open" detection and weekday programming. This product is only suitable for well-insulated rooms or for occasional use (EU Regulation 2015/1188 Article 3, Annex II b) II (2). The room temperature controller is not part of the product. Since the interfaces are open, you can either use your own thermostat system or, for example, our OT50 thermostat system. The OPRANIC P6, Hybrid series has a mechanically integrated surface thermostat.
