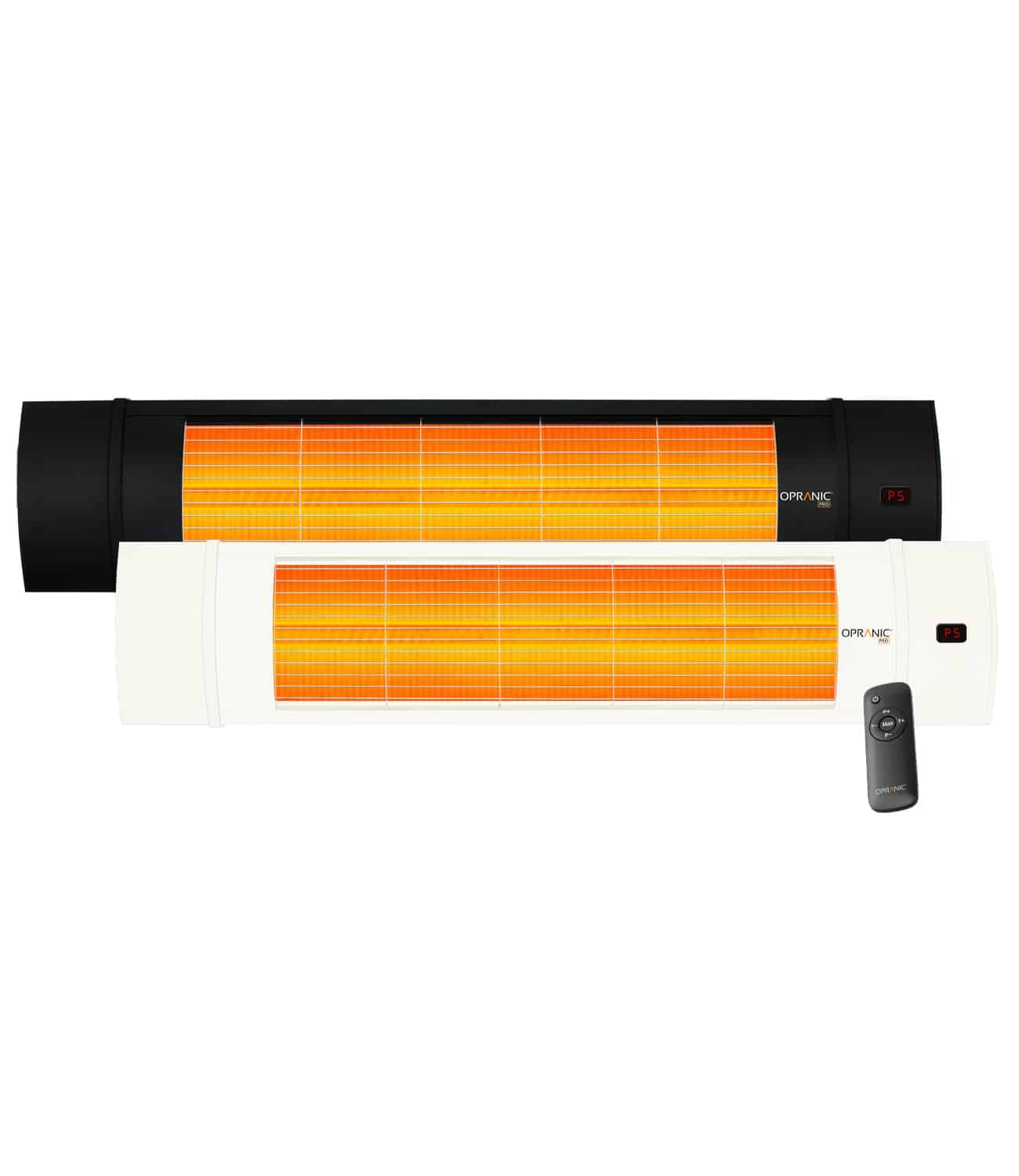

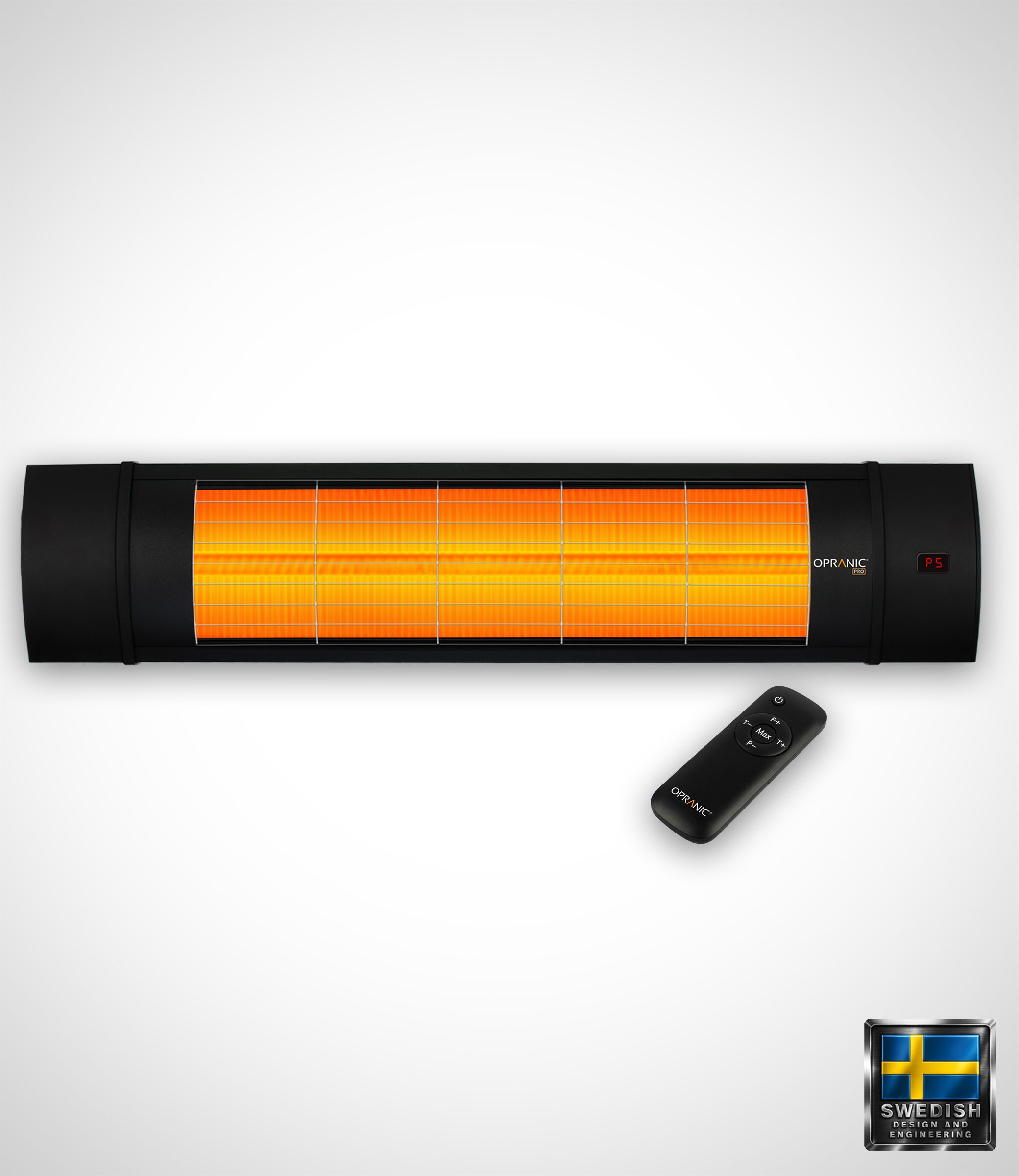

OPRANIC PRO V70R Wall Patio Heater 2300W, IR-X Carbon Black, IP65, Remote, Timer

• Cosy warmth from above like in open-air restaurants
• Flexible mounting, ideal alignment and consistently pleasant warmth in your seating area
• Remote control with automatic shut-off for easy operation.

Control:

• Remote control
• 1 - 9 hour Sleep timer
• Heat output: Max. 2300 watts
• 5 power levels: 900W, 1200W, 1600W, 1900W and 2300W

Design:

• Slim, stylish modern design
• Modern, thin aluminium body in Jet Black or Cloud White

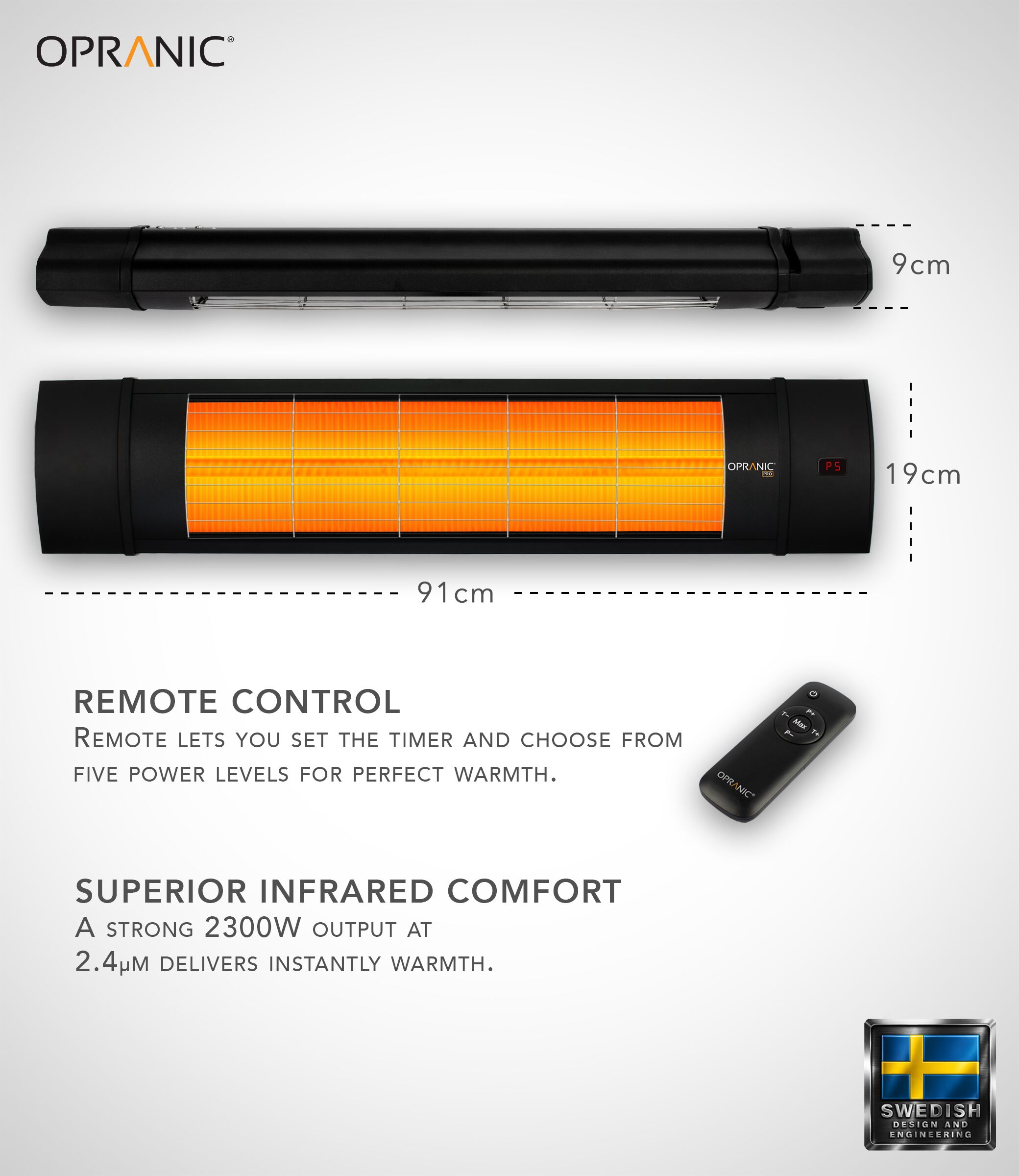

• Dimensions (H x W x D): 19.5 x 91.5 x 9 cm

Heating Technology:

• The main element: IR-X Carbon Black Technology, Fast startup within 3-5 seconds, Highest absorption for humans with 2.3µm Medium Wave Infrared radiation, Converts 96% to radiant heat and 2-3% light (ultra low light), Lifetime up to: 12,000 hours
• Reflector: Focused parabolic reflector with high gloss reflection, Side reflectors in high gloss stainless steel.

IP Protection:

• IP65 Water protection for all-year usage in harsh weather conditions
• Suitable for outdoor use, terraces, open-air restaurants

Areas of application:

• Outdoor areas, Balconies, Terraces, Backyards, Outside seating areas, Camping, Open conservatories, Open-air catering establishments, Outdoor seating areas and indoor areas such as garage, basements, summer houses, and winter cabins.

Heating Area:

• Wind-protected areas with ambient temperature of min 10ºC: up to 15-25 m²
• Outdoors: 7-15 m², depending on outside temperature and wind conditions

Installation:

• Incl. 2-piece mounting brackets with adjustable installation width.
• Adjustable angle.
• For mounting on the wall & ceiling or metal profiles etc.
• Recommended mounting positioning on the wall: 1,8 - 2,2 meters from the ground, tilted 30-50°.

Current load and fuse:

• A standard household power line delivers approx. 3.5 kW at 16 amp. or approx. 2.3 kW at a 10 amp.
• A heater with an output of 2300 watts = 2.3 kW (requires min 10 amp fuse)

Safety distance to flammable materials:

• Mounted on wall distance to the side wall/ceiling: 40/20 cm
• To the front: 100 cm
• To the sides: 40 cm
• Mounted on the ceiling: 10 cm (the height of the mounting brackets)

Heating costs:

At an average electricity price of 10 cents per kWh: 0.1 € * 2.3 kW ≈ 0.23 € per hour
* Applies to the highest heating level. If a lower output is selected, the resulting costs are lower.

Technical Data

• Product: OPRANIC PRO V70R - outdoor electric heater

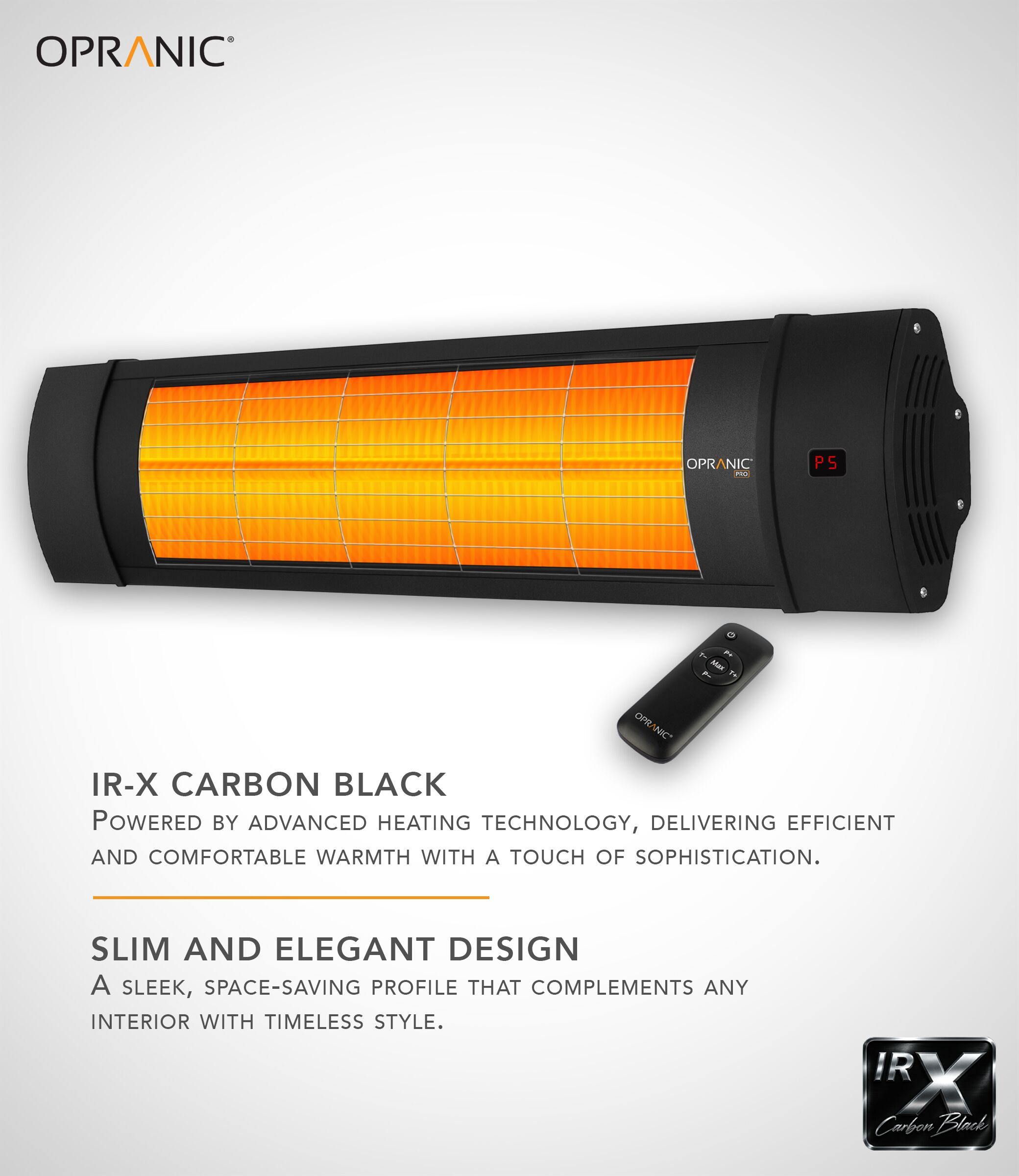

• Infrared technology: IR-X Carbon Black

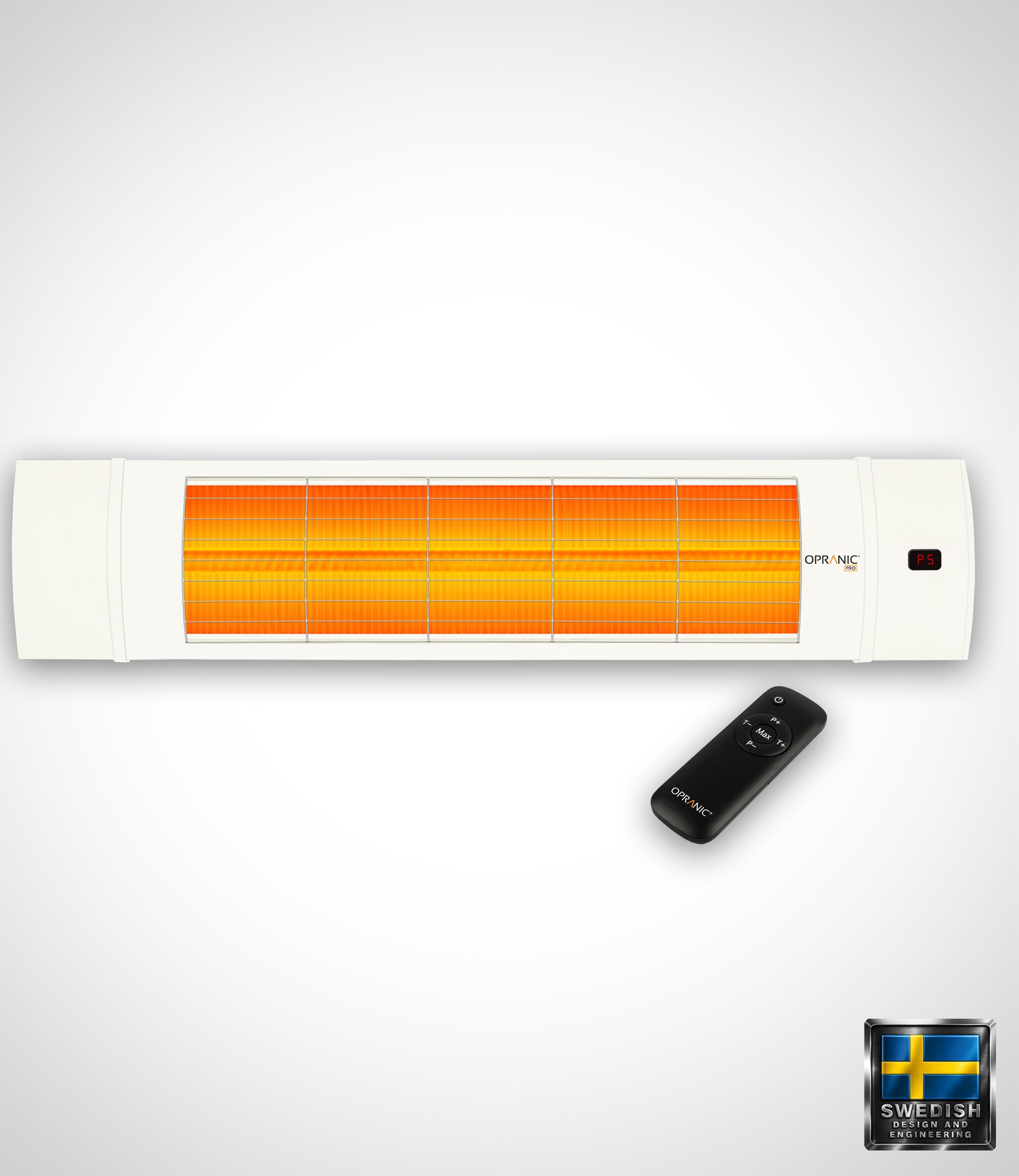

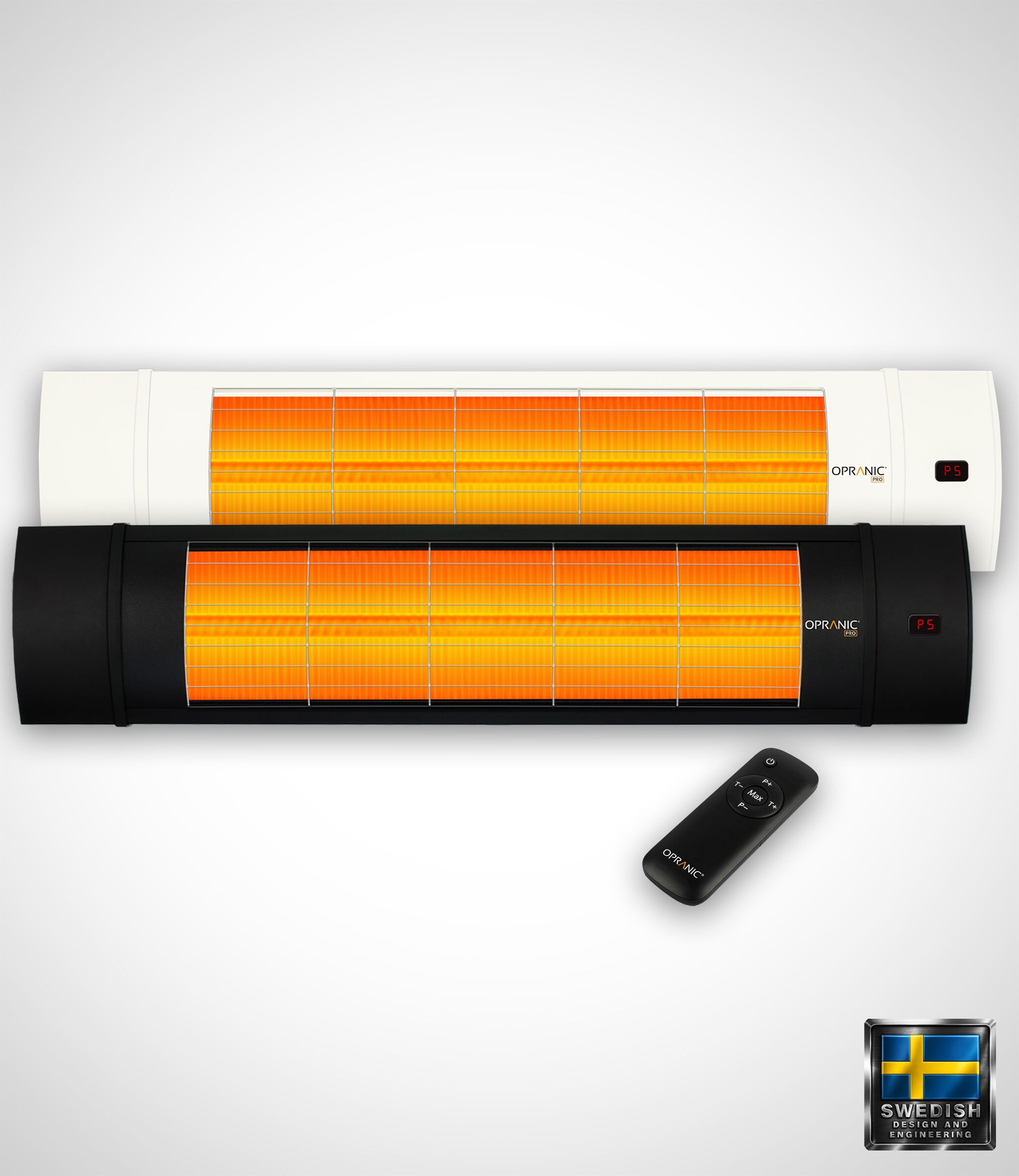

• Colour: Jet Black or Cloud White
• Material: Solid aluminium with powder-coating, with glass fiber-enforced side plastics
• Voltage: 230V AC ~ 50 Hz
• Total output: 2300 watts
• 5 heat settings: 900 watts | 1200 watts | 1600 watts | 1900 watts and 2300 watts
• LED display: yes
• Sleep timer: yes (9 hours)
• Power plug: Type F schuko plug (EU Standard)
• For a permanent connection to the mains, the plug must be disconnected by a qualified professional. The warranty will remain valid.
• Cord length: 1.9 m
• Remote control: yes, long-distance infrared
• Remote control functions: On, off (standby), selection of heat levels, max power, timer.
• Dimensions (H x W x D): 19.5 x 91.5 x 9 cm
• Weight: 3.2 kg
• Protection class: IP65 (protected against rain, water jets, dust)
• Mount: Two-piece brackets for wall/ceiling installation.
• Infrared radiation type: Highest absorption for humans with 2.3µm Medium Wave Infra radiation
• Heating area: max. 7-15 m² outdoors, up to 25-30 m² in wind-protected areas
• Batteries remote control: 2 x AAA (included in delivery)

Delivery Contents

• 1 x PRO V70R outdoor electric heater
• 2 x Two-piece mounting brackets
• 1 x Mounting equipment (screws)
• 1 x Remote control (batteries included)
• 1 x User manual
